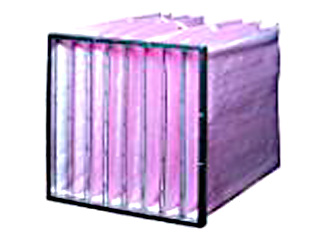

The synthetic bag filters provide  excellent filter economy, efficient dust control,  with a low resistance to airflow and are moisture  resistant. The range of available efficiency makes  this a suitable filter solution for almost any  commercial or industrial air handling system.

Features ：

• Low initial pressure drop provides longer life

• Synthetic Fiber Media

• Galvanized or aluminum metal frame

• UL Standard 900 Class 2

• Available in 4  efficiency ranges:

Specifications:

Frame: Galvanized Steel, Aluminum

Efficiency: F5(EN779)     40-60% --MERV9,MERV10

Media: Synthetic fiber   F6(EN779) 60-80%--MERV11,MERV12

Temperature:〈75℃

Construction:

The hemmed edge frame is constructed of galvanized steel  and aluminum supports. The media is made of moisture  resistant synthetic fibers.  The design of the filter  bags allow for a lower pressure drop resulting in better  filter economy.

Application:

The synthetic bag filters are widely  used in ventilating and air conditioning systems and  are often used in cleanroom MAU and AHU systems. Due  to its excellent filter economy, its commercial and  industrial applications include office buildings,  shopping centers, schools, hospitals, automotive  plants, etc.

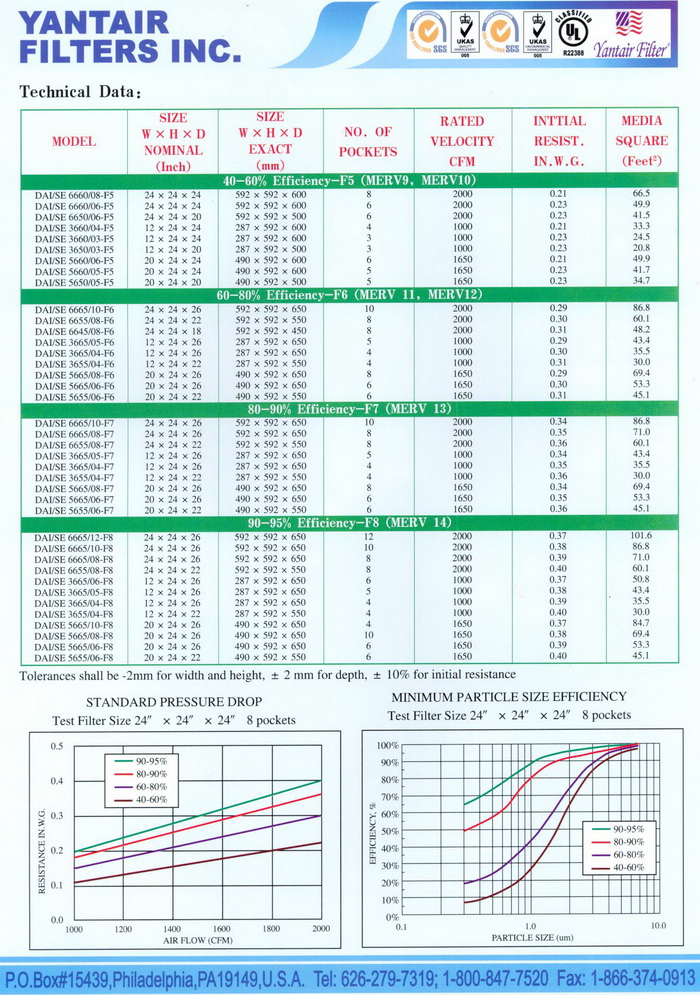

Technical Data:

• 90-95%

• 80-90%

• 60-80%

• 40-60%

Specifications:

Construction:

The hemmed edge frame is constructed of galvanized steel  and aluminum supports. The media is made of moisture  resistant synthetic fibers.  The design of the filter  bags allow for a lower pressure drop resulting in better  filter economy.

Application:

The synthetic bag filters are widely  used in ventilating and air conditioning systems and  are often used in cleanroom MAU and AHU systems. Due  to its excellent filter economy, its commercial and  industrial applications include office buildings,  shopping centers, schools, hospitals, automotive  plants, etc.

Technical Data:
